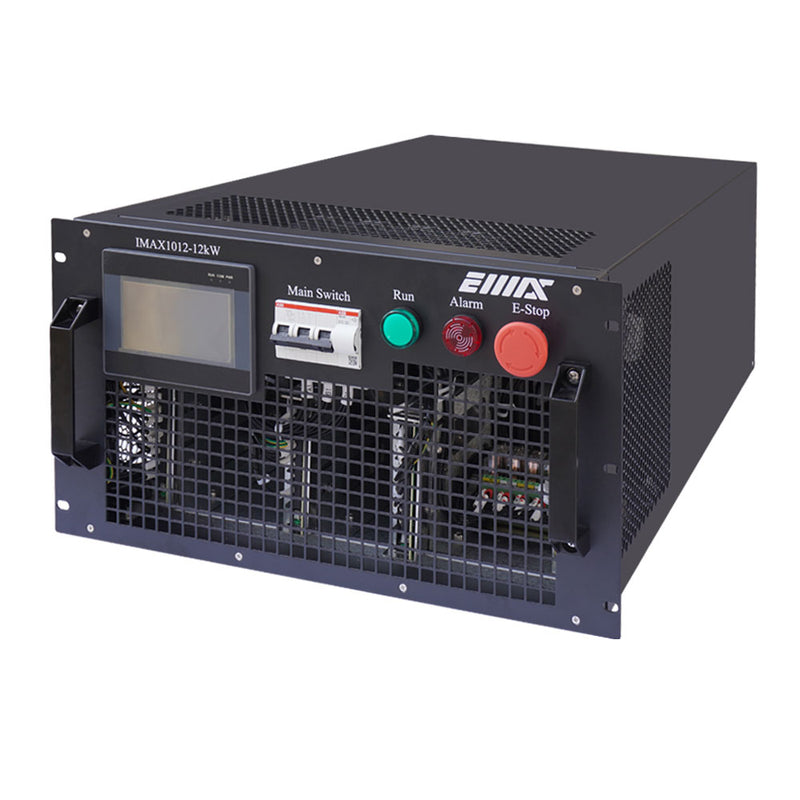

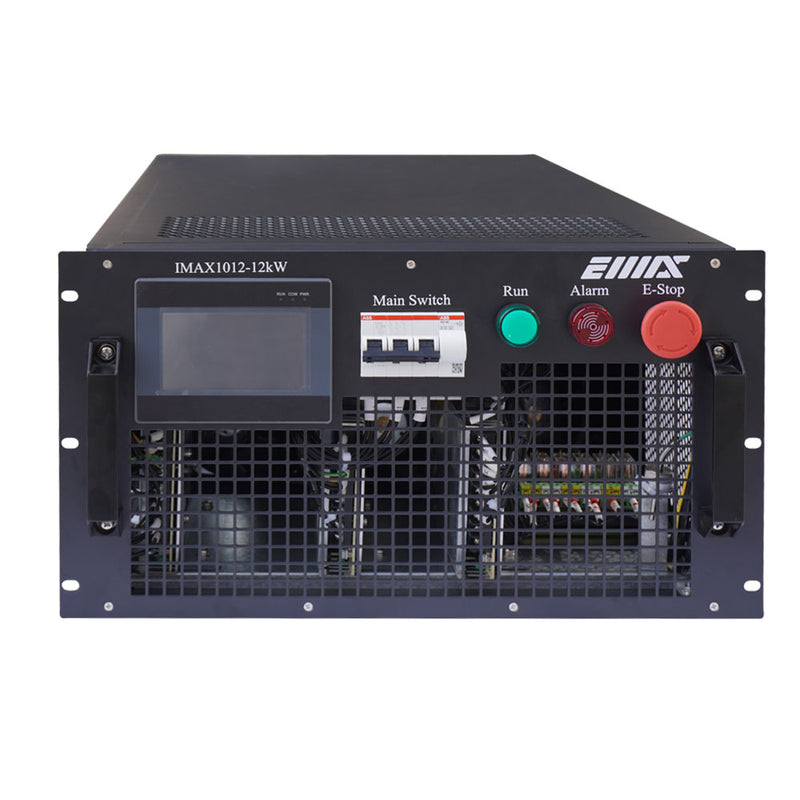

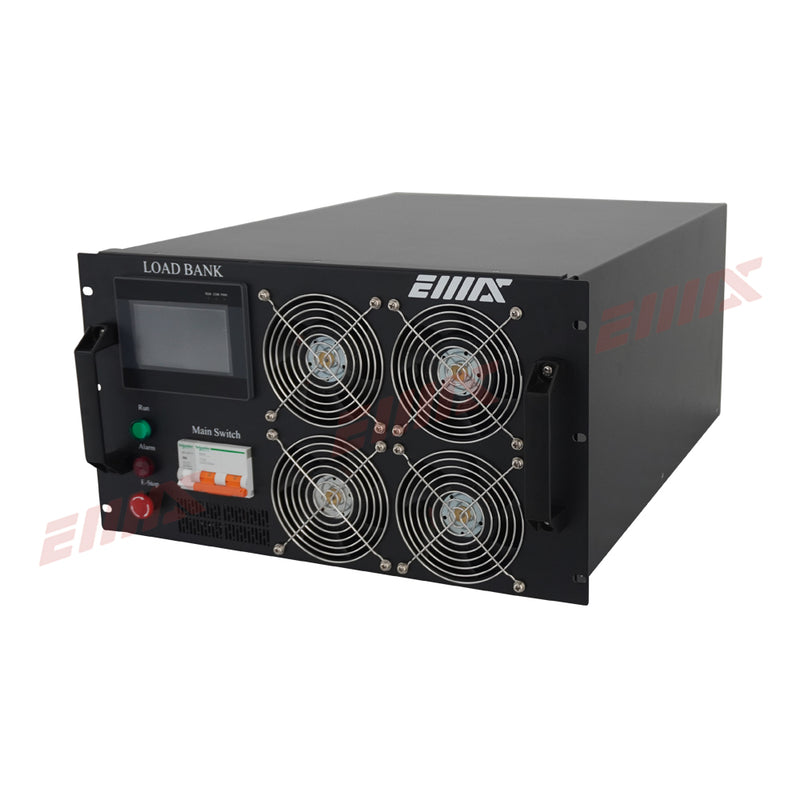

This is the latest rack-mounted air-cooled load bank designed by EMAX, mainly tailored for the testing of data center backdoor air conditioners. Boasting high power density and ultra-low temperature rise, it can also meet the testing requirements of UPS and generators, delivering versatile performance for multiple scenarios.
Operation is extremely convenient, available in two versions: remote control and local control, allowing flexible operation according to on-site needs. Parallel expansion is simple and hassle-free, enabling easy capacity expansion to adapt to different testing scales.
It is equipped with an alarm and protection for temperature, current, voltage, and power, providing real-time monitoring of equipment operation status and clear records of abnormal conditions. The EPO one-key unloading function ensures safe and quick shutdown in emergency situations, maximizing operational safety.
- Working Cycle: Continuous operation.
- Load Accuracy: ±3%
- Power Factor: 1
- Remote Control: An external Ethernet port is provided to mimic the control screen using free software for remote control using a customer-provided laptop, PC, or tablet. Modbus RS485 or Modbus TCP/IP.
- Instrumentation: Digital metering (V, A, kW) and data logging.
- Control Power: Via external 110~240V AC, 3P4W or 3P5W, 50Hz.
- Testing Power: 230V380V/400V/415V/480V
- Cooling System: High air flow volume EC fans
- Noise: ≤92dB（1M）Indoor.
- Load Elements: Helically wound chromium alloy. The heating elements are supported by mica arrays and arranged compactly and regularly to achieve optimal air resistance and temperature rise.
- Safety Features: Over-temperature, over/under voltage, cooling-air loss, and current imbalance protection.

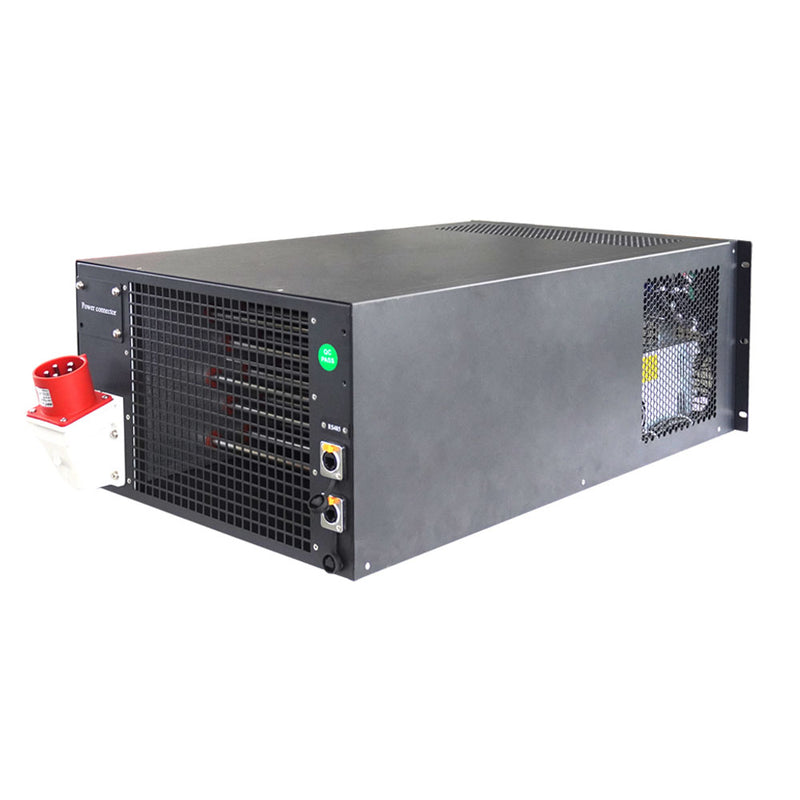

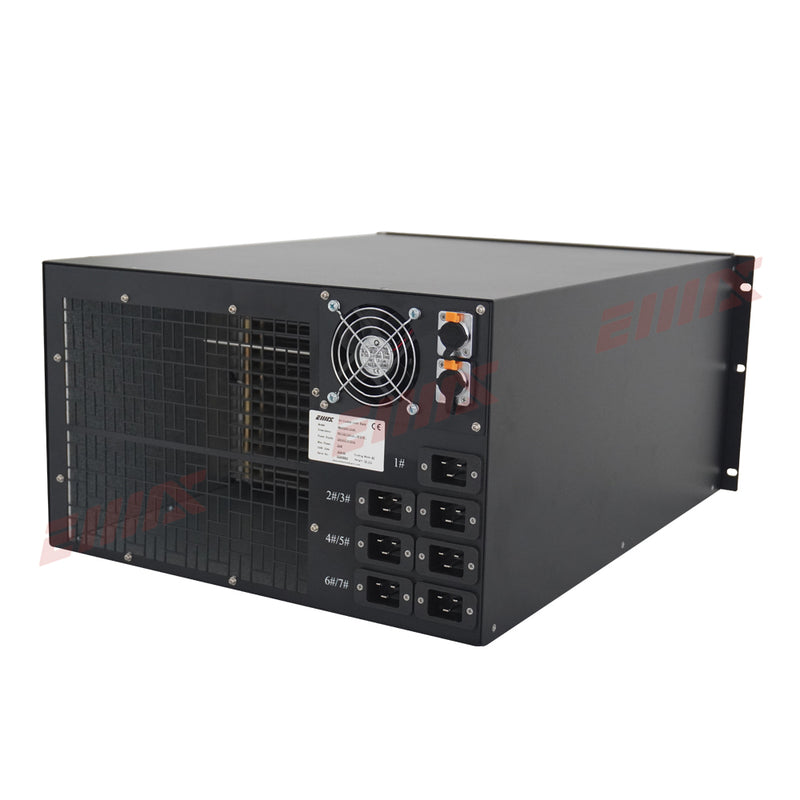

- Load Connections: Cee form, C14, C20
- Daisy Chained: Multiple load banks can be hooked together for higher load capacity.
- Enclosure: Portable steel indoor enclosure with powder coat finish.
- Weight: 30kg
- Dimensions: W483mm*D800mm*H266mm -6U
