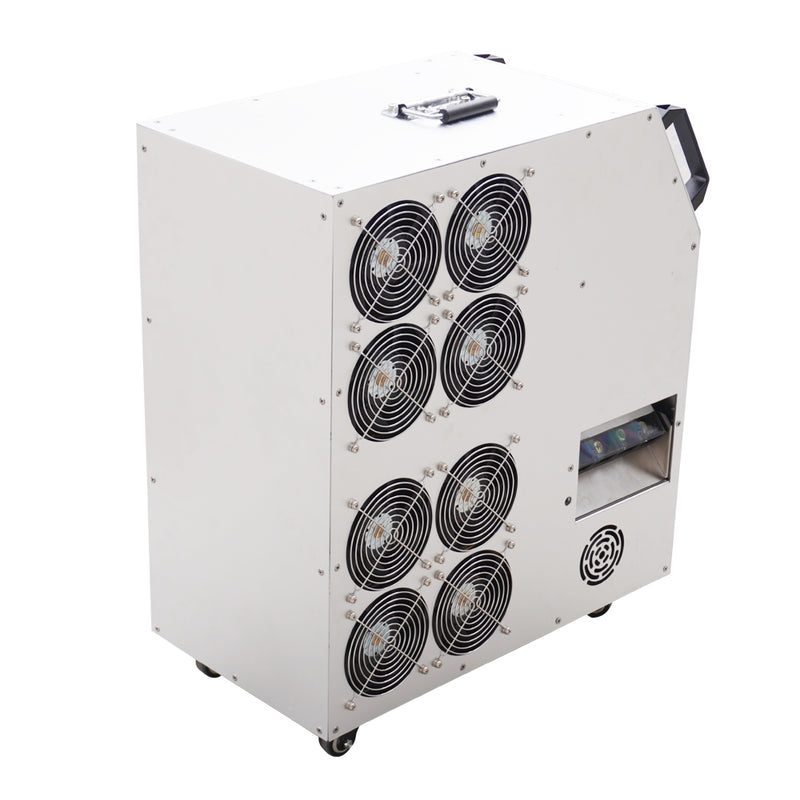

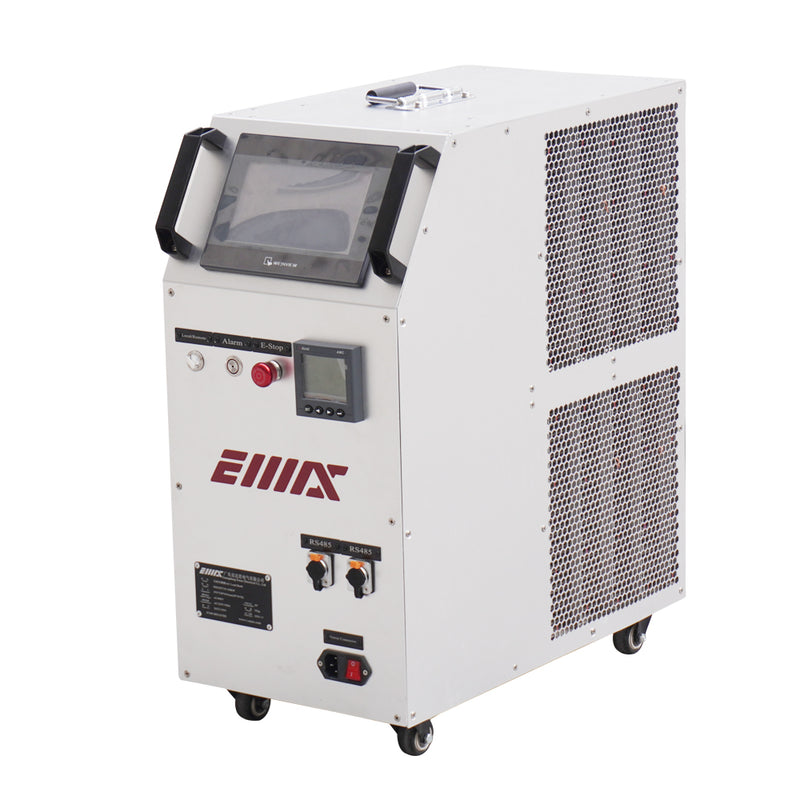

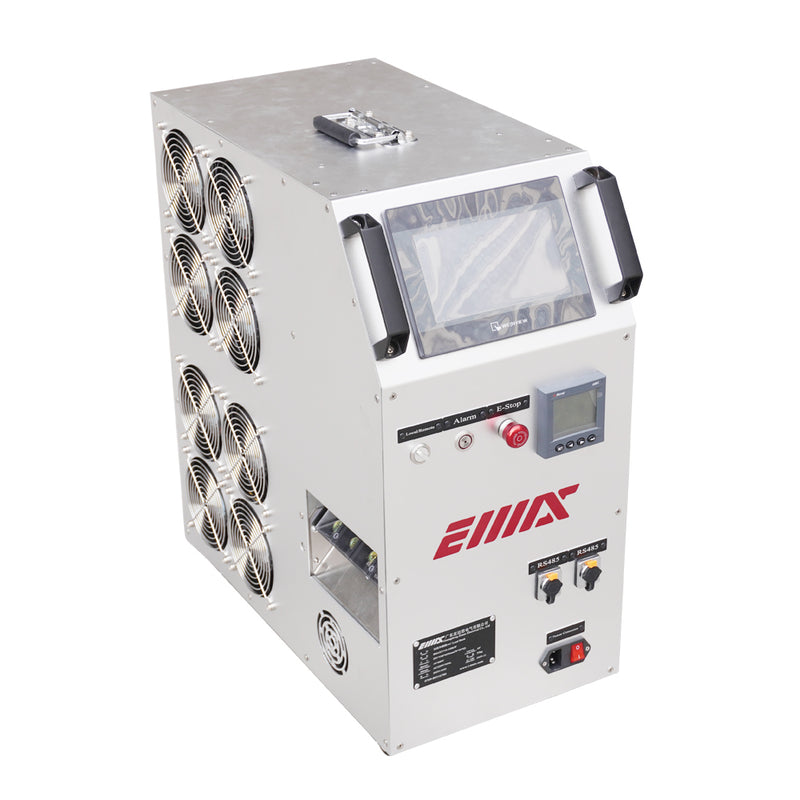

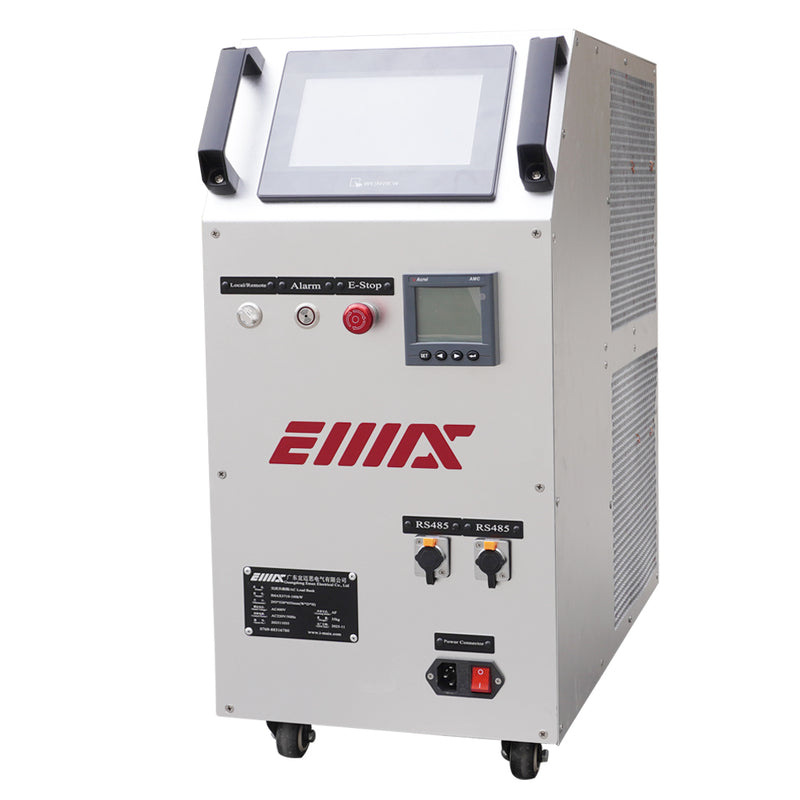

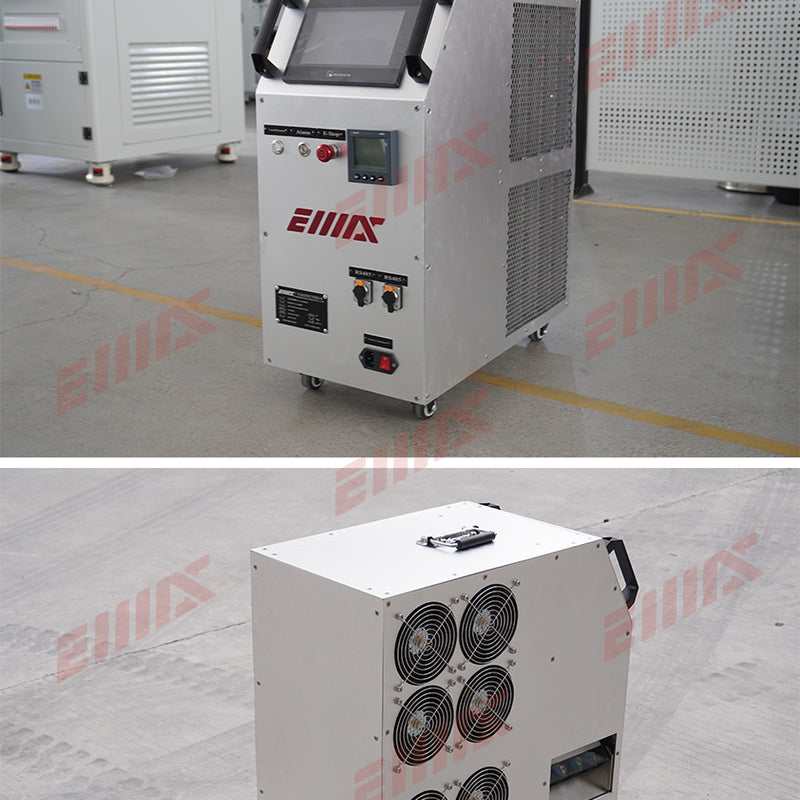

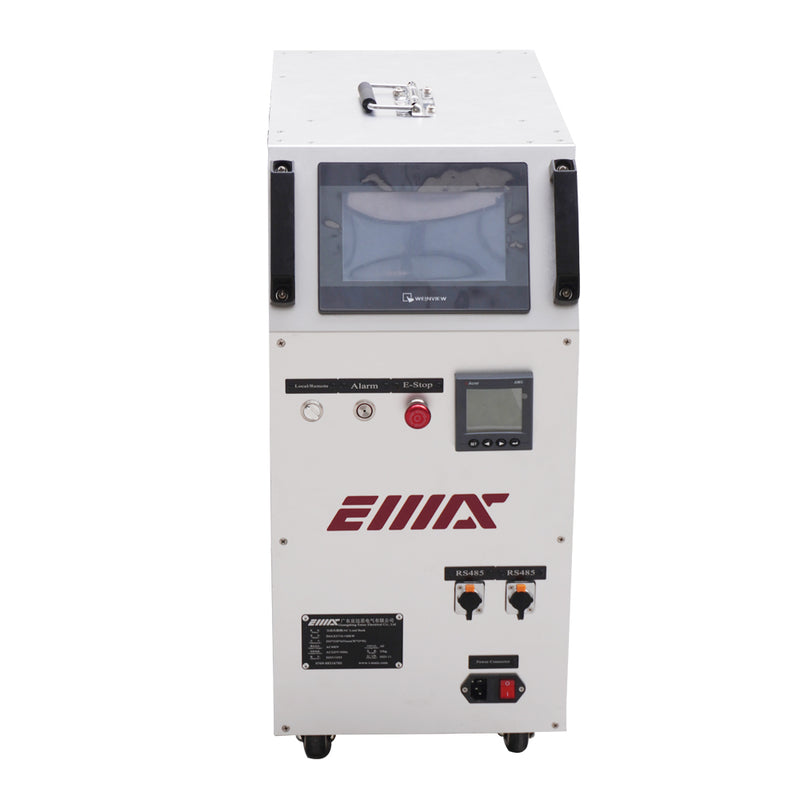

This 100kW portable load bank is a compact load bank designed for indoor use, eliminating concerns about space constraints. It features helically wound chromium alloy heating elements, neatly arranged and supported by high-temperature mica. It also incorporates components from brands such as ABB, Siemens, and Schneider Electric. The airflow design features side intake and side exhaust, fully meeting the needs of portable generators and data center simulation testing.
- Working Cycle: Continuous operation.
- Load Accuracy: ±3%
- Power Factor: 1
- Remote Control: An external Ethernet port is provided to mimic the control screen using free software for remote control using a customer-provided laptop, PC, or tablet. Modbus RS485 or Modbus TCP/IP.
- Instrumentation: Digital metering (V, A, kW) and data logging.
- Control Power: Via external 110~240V AC, 3P4W or 3P5W, 50Hz.
- Testing Power: 380V/400V/415V/480V
- Cooling System: Integral forced-air cooling system, bottom inlet, up outlet, IP54 rated.
- Noise: ≤80dB（3M）Indoor.
- Load Elements: Helically wound chromium alloy. The heating elements are supported by mica arrays and arranged compactly and regularly to achieve optimal air resistance and temperature rise.
- Safety Features: Over-temperature, over/under voltage, cooling-air loss, and current imbalance protection.
- Load Connections: Copper Busbar, Camlock, Powerlock connectors are optional.
- Daisy Chained: Multiple load banks can be hooked together for higher load capacity.
- Enclosure: Portable steel indoor enclosure with powder coat finish. Equipped with four-way swivel casters at the bottom and a sturdy handle, mobility-friendly.
- Weight: 36kg
- Dimensions: W295mm*D540mm*H655mm
