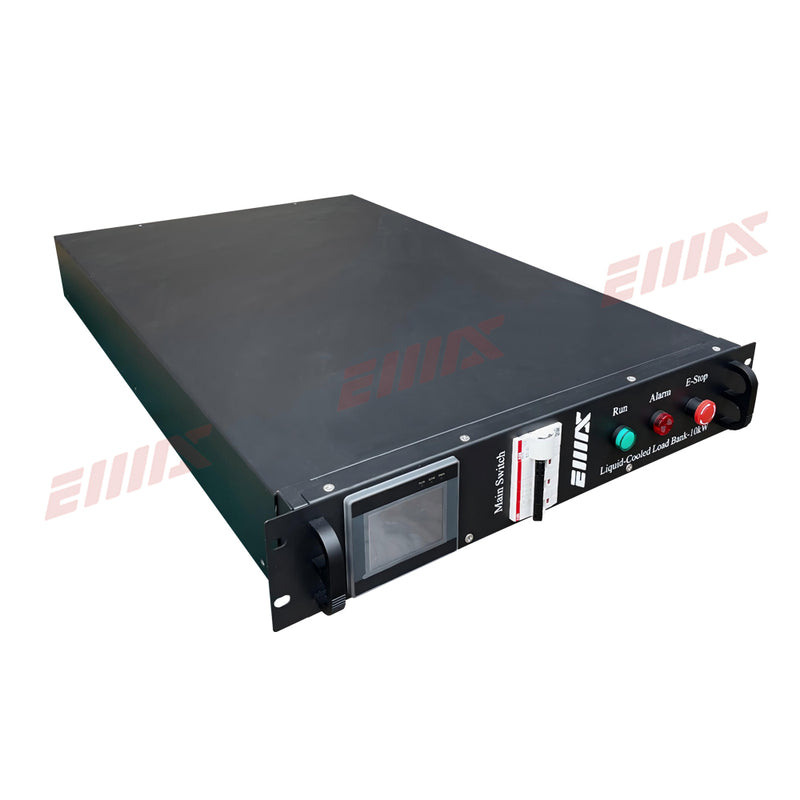

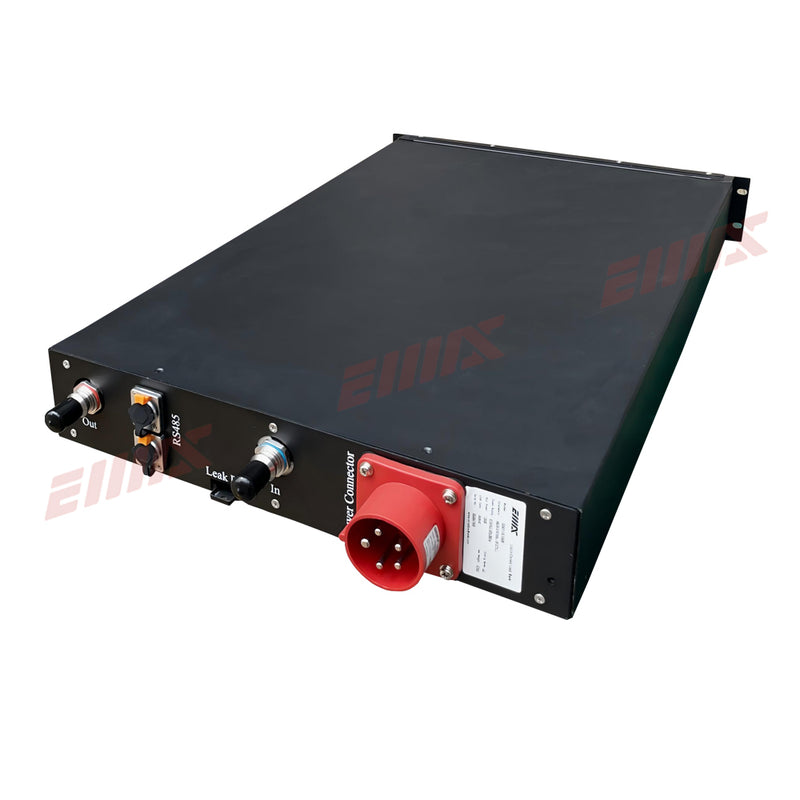

This 10kW liquid-cooled load bank has a 2U rack height. Water inlet/outlet fittings are optional with UQD04, UQD06, UQD08, or tri-clamp connections. It supports AC three-phase 380V–480V, single-phase 208V–277V, and customized DC voltage upon request. AC power interface adopts IEC60309 Ceeform standard, while OCP DC interface is available as an alternative. Local control via built-in HMI and remote control supported through Modbus RTU protocol. Comprehensive protection functions include overcurrent, overvoltage, overtemperature, overpressure, and low flow rate alarms. EPO triggers prompt notification and automatic power cutoff, and all alarm records are saved in real time.
- Working Cycle: Continuous operation.
- Ambient temperature: -10℃~50℃
- Operating environment humidity: 0～95%
- Dimensions: Height 2U, 433* 87 (panel height is 87) * 500
- Instrumentation: Digital metering (V, A, kW) and data logging.
- Control Power: Via external 400V AC or customized.
- Inlet water temperature: 5-50℃
- Load Elements: High-capacity Nichrome load elements. Elements are fully supported with stainless steel rods and high-temperature refractory ceramics for quick heat discharge.
- Safety Features: Over-temperature, over/under voltage, pressure, flow rate, and current imbalance protection.
- Load Connections: Copper Busbar, Camlock connectors are optional.
- Daisy Chained: Multiple load banks can be hooked together for higher load capacity. Modbus RTU RS-485 protocol.
- Enclosure: Heavy gauge steel outdoor enclosure with powder coat finish. Hinged access doors with lockable latches. Forklift pockets for easy mobility.
