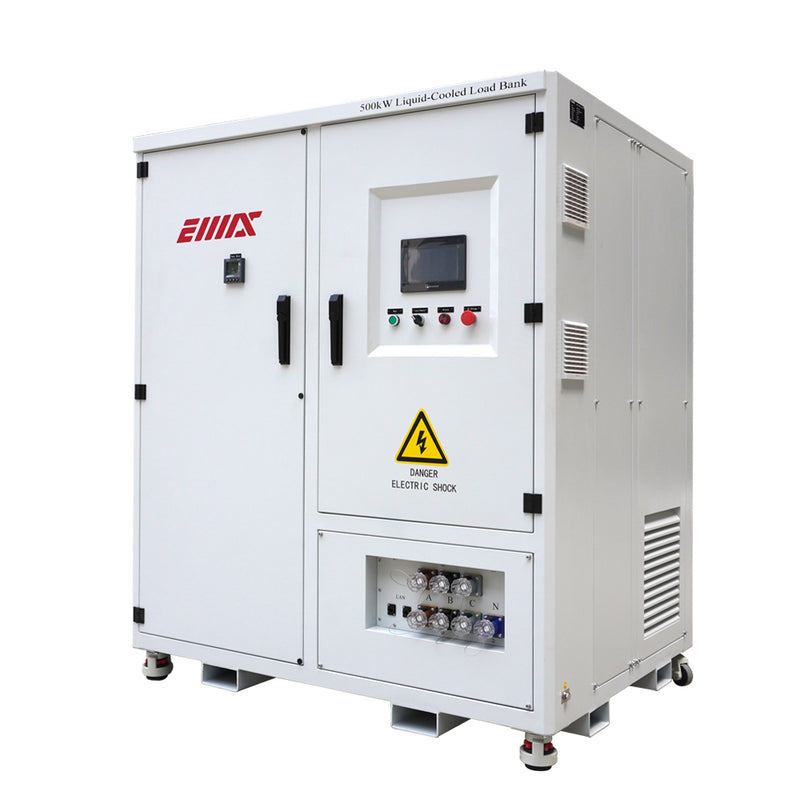

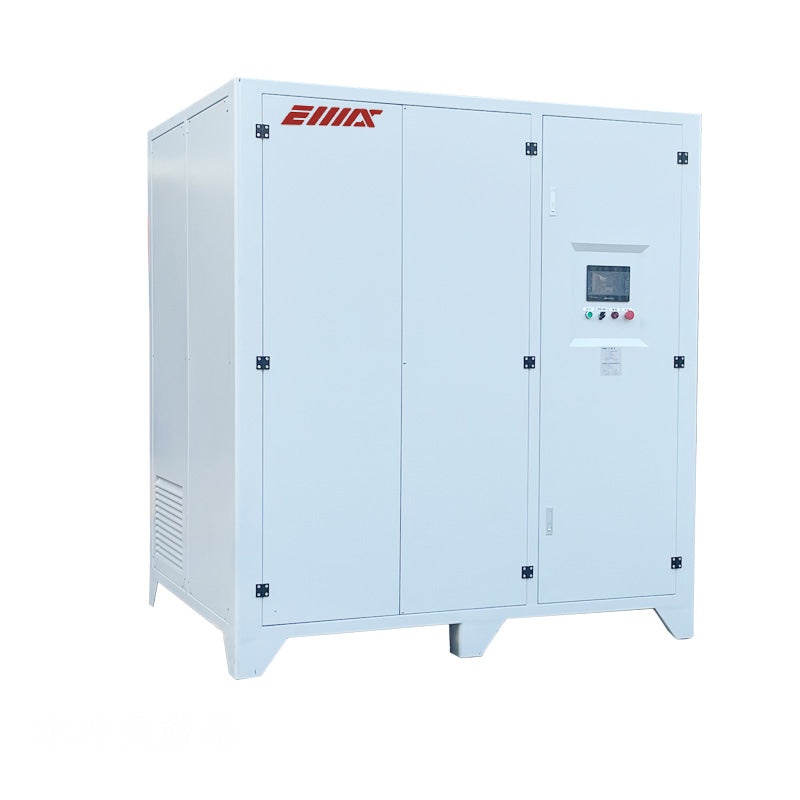

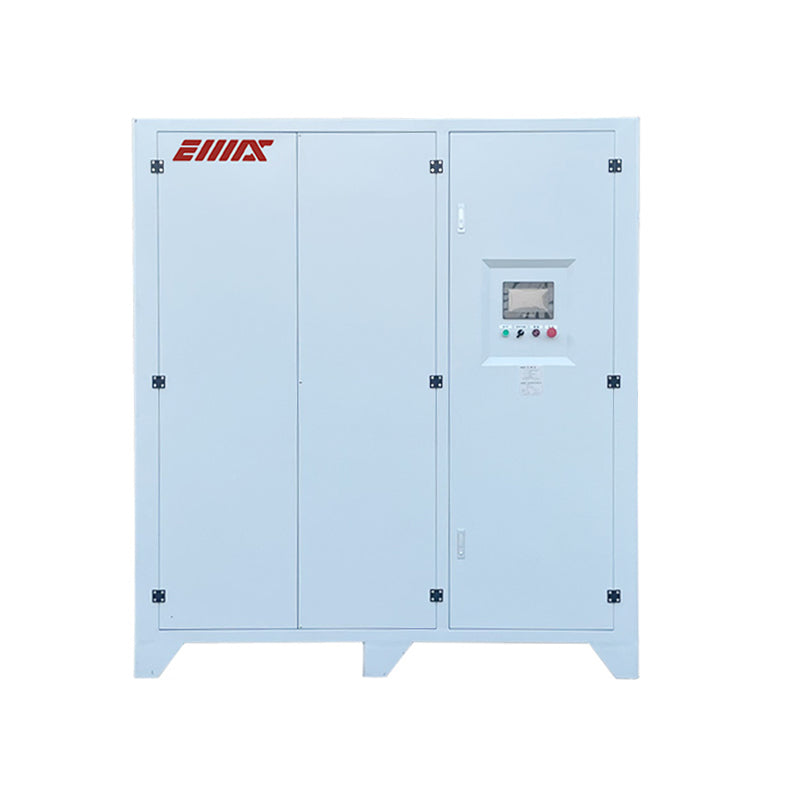

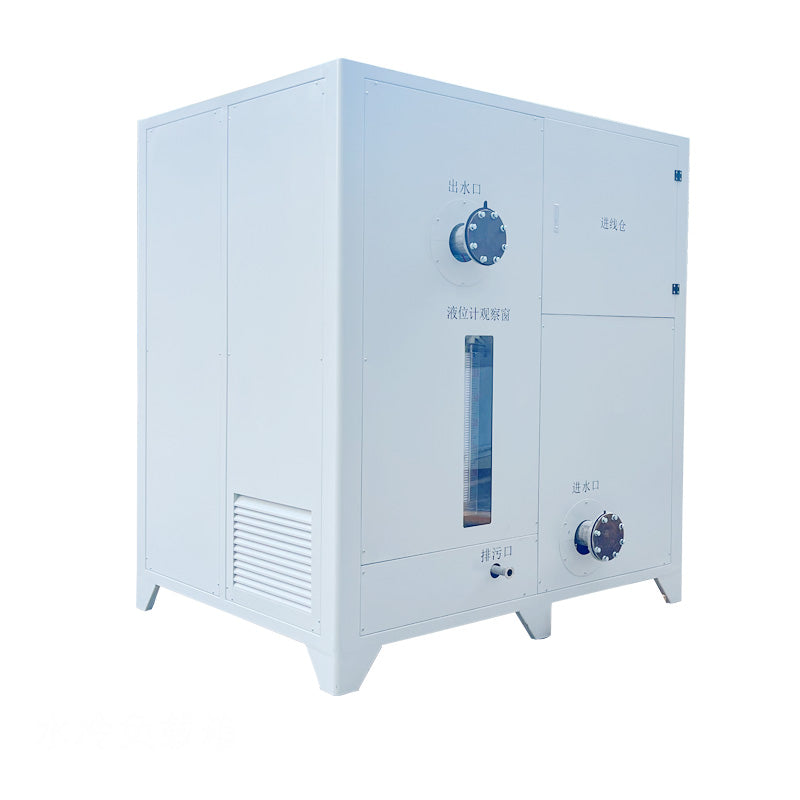

The 500KW Water Cooled Load Bank features with max 500KW power, and the rated voltage can be customized. It uses water as a refrigerant to cool down, which can reduce energy consumption by 30%-50% and reduce noise by 20-35db. Equipped with professional host computer programming software, independently developed by EMAX. This software offers lifetime free upgrades and maintenance, ensuring long-term reliability and seamless performance.
Specifications:
- Rated Power: 500KW
- Tank Quantity: 1PC
- Rated Voltage: 380V/400V/415V AC
- Working Cycle: Continuous operation.
- Load Accuracy: ±3%
- Remote Control: RS485, Modbus-RTU, using free software for remote control using a customer-provided laptop, PC, or tablet.
- Instrumentation: Digital metering (V, A, kW) and data logging.
- Control Power: External power

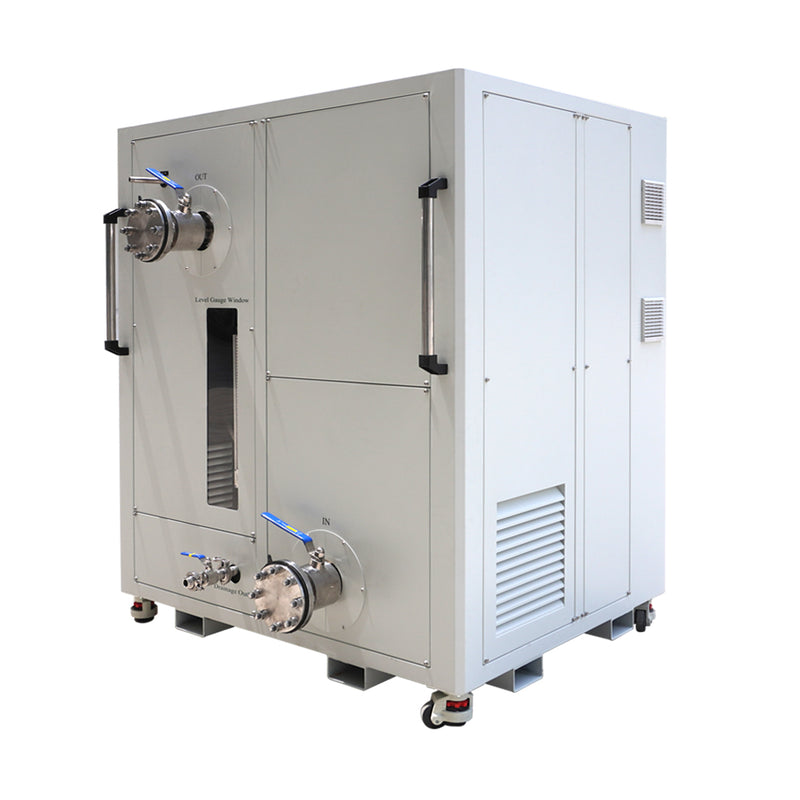

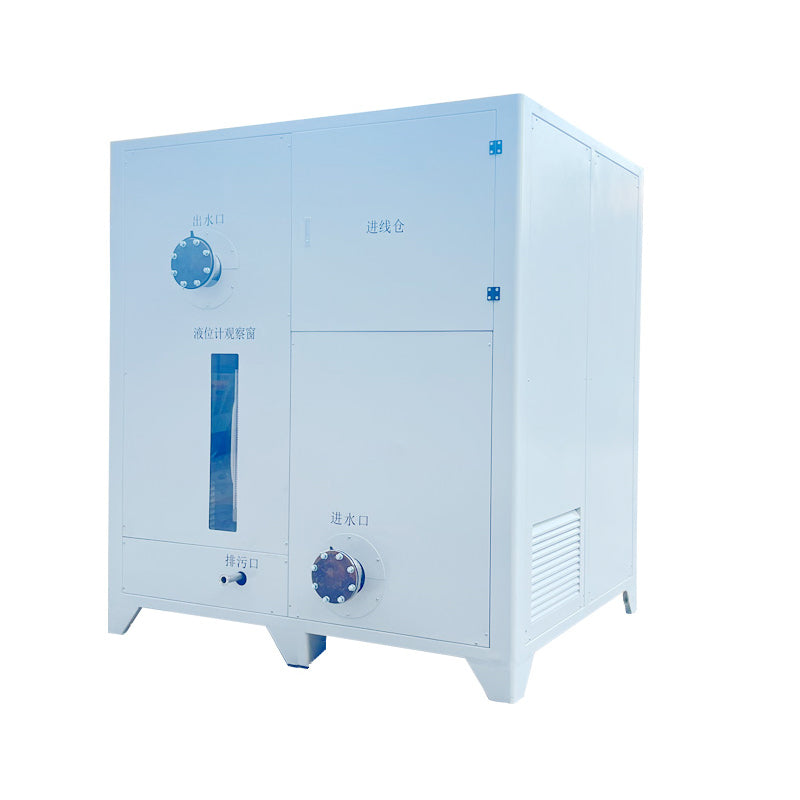

- Cooling System: Water Cooling, bottom inlet, up outlet
- Noise: ≤60dB（3M）
- Load Elements: High-capacity Nichrome load elements. Elements are fully supported with stainless steel rods and high-temperature refractory ceramics for quick heat discharge.
- Safety Features: Over-temperature, over/under voltage, cooling-air loss, and current imbalance protection.
- Load Connections: Copper Busbar, Camlock connectors are optional.

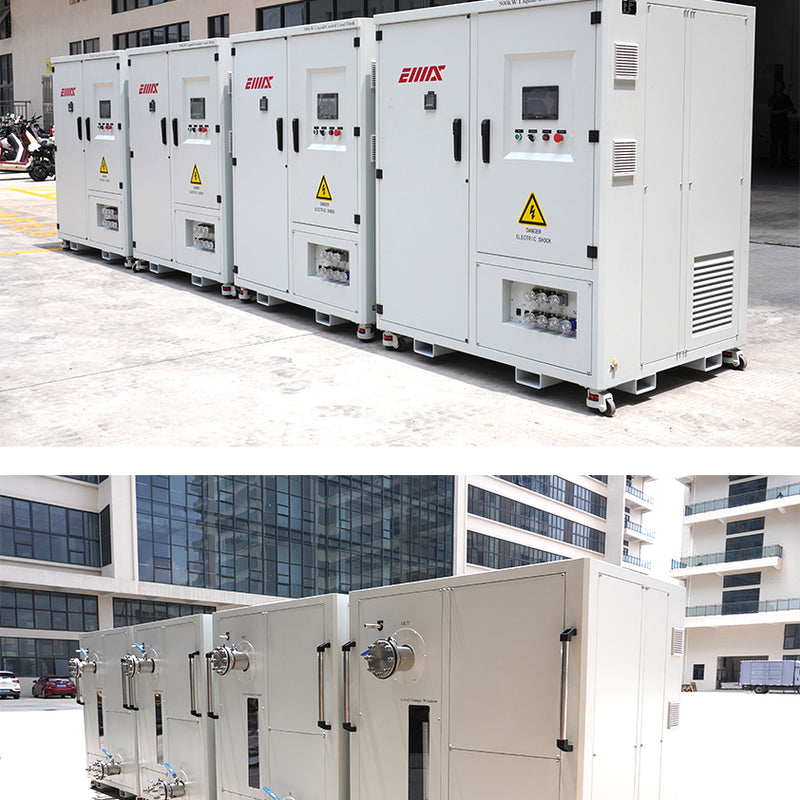

- Daisy Chained: Multiple load banks can be hooked together for higher load capacity.
